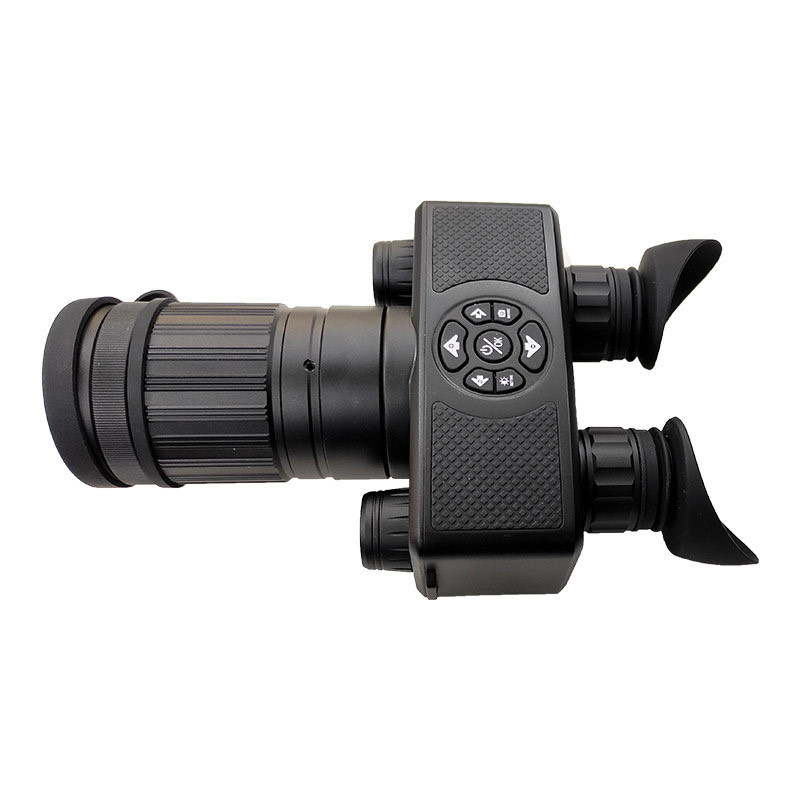

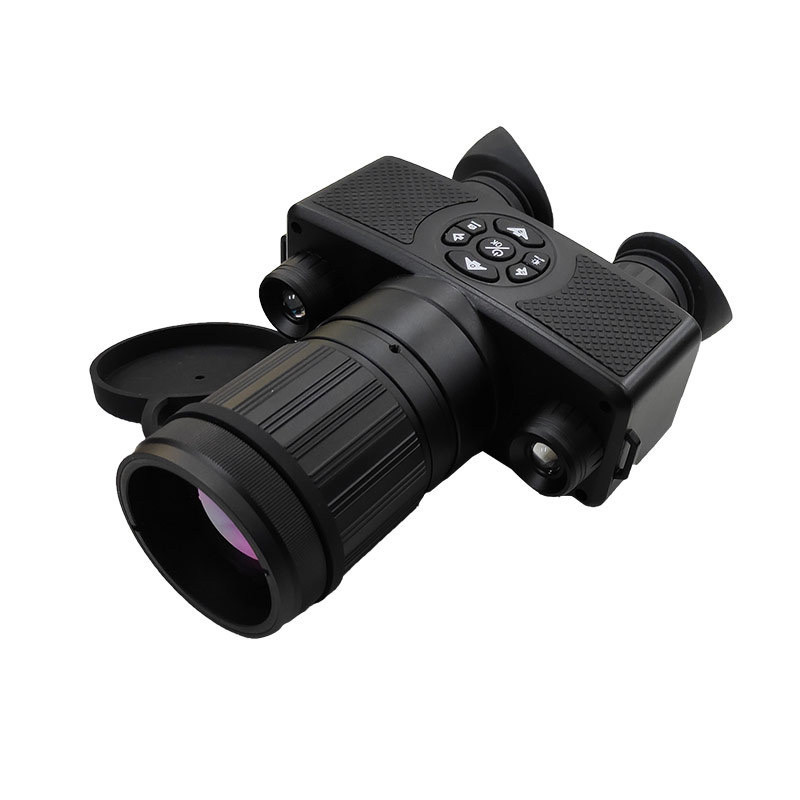

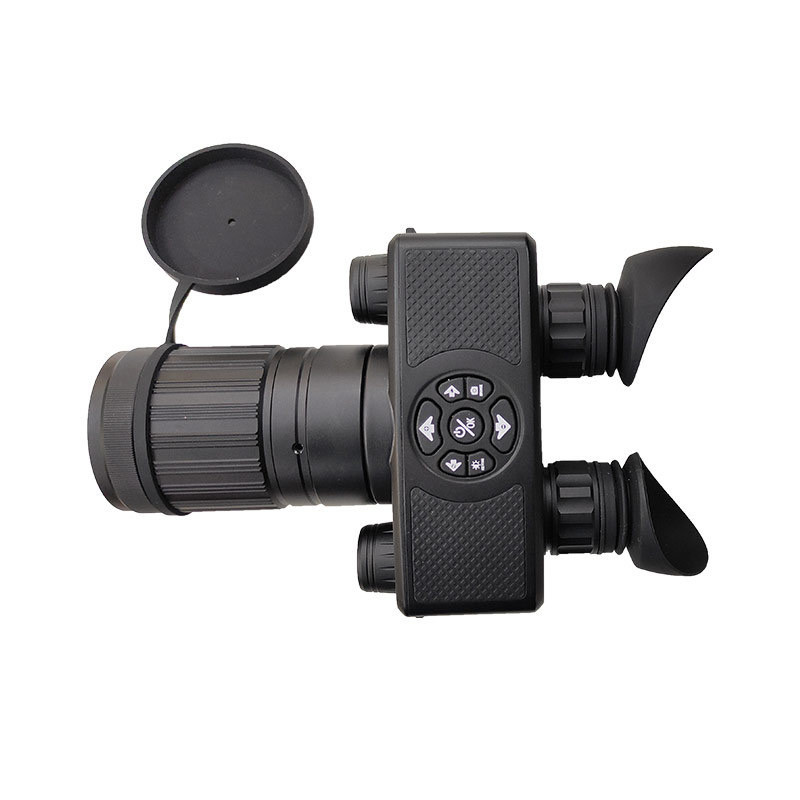

SUB3076 Binocular monocular infrared code night vision device
Product Description
Model Number
SUB3045
Appearance Style
Binocular Monocular
Detector Type
Uncooled
Detector Resolution
384 × 288
Refresh Frequency
30
Pixel Pitch
17µ m
Magnification
4. 1X
Digital zoom
1-12X
Objective lens focal length
F50mm
Objective Aperture
F/1.0
Closest Focus
0.3m
Field of View
d=9 h=7.5 v=5.6
Field of view @ 100 metres
13.5*9.8m
Diopter Adjustment
±5 °
Maximum Viewing Distance
3000 metres
Video/Photo Resolution
1920 × 1080
Video/Photo Format
.avi/.jpg
Support memory card (TF card) size
4G-128G
WIFI connection mobile phone APP
Support iOS & Android
Wifi acceptance distance (farthest)
20m
Battery Type
CR123A lithium battery*3
External power supply
5V (USB) supports mobile power, DC power, etc.
Product Size
170*130*60mm
Weight
720g
Image Viewing Mode
6 types
★Professional Configuration Adopting professional grade F1.0 aperture germanium lens with high light transmission performance; the inner screen adopts high-resolution 1280X720 LCOS screen with clearer picture quality. ★More comfortable for both eyes to observe Adopting dual-eye structure design, it can effectively reduce eye fatigue caused by long-time viewing and restore the observation effect to the maximum extent. ★WIFI connection to mobile phones to achieve synchronous viewing and remote control function. The RNO camera can be connected to mobile phones (Android and iOS) and other smart devices via the built-in Wi-Fi. The APP software on mobile phones and other smart devices enables you to watch the images displayed in the instrument's eyepiece in real-time synchronously, take photos and videos remotely, set the parameters remotely, and play/download/delete/share the pictures and video files with one click (share them on WeChat/QQQ/Jittery, etc.). ★One-click to turn on the video or photo function During the observation process, you can turn on the video or photo function with one key to record the wonderful moments in time, which really realises "see what you think, shoot what you see". Meanwhile, it supports the recording and saving of the surrounding sound and time and date. Smooth digital zoom (zoom in or zoom out) Smooth digital zoom allows you to zoom in and out of the target, allowing you to see the panorama and details close up. ★Multiple image colour modes The RNO thermal imager has 6 built-in image colours, allowing the user to choose the right colour for different environmental backgrounds. The classic "White Heat" mode is the most commonly used, while "Black Heat" is best for observing wildlife at night. "Hot Metal" and "Rainbow" enhance the temperature contrast of various objects, while "Green" and "Cyan" are suitable for Green" and "Cyan" are suitable for long-distance observation. ★Outdoor GPS Function Accurate outdoor GPS positioning function can effectively locate the user's geographic position, convenient to record the whereabouts of the route and share the location coordinates with family, friends or colleagues. ★Adjustment of viewing image brightness Users can manually adjust the brightness of the camera's viewing image according to their personal preferences. ★Wide eyepiece design The wide eyepiece design reduces eye fatigue and dryness over long periods of time for a comfortable viewing experience by increasing the width of the eyepiece to 19mm. ★Supports micro SD cards in the range of 4G-128G. Insert a micro SD card (4G-128G) and take videos or pictures to record and save your adventures, share the wonderful moments with your family and friends! ★Built-in lithium battery, long standby time Built-in lithium battery, long standby time, while supporting a variety of power supply methods, such as mobile power (rechargeable treasure), DC, car power, etc..
