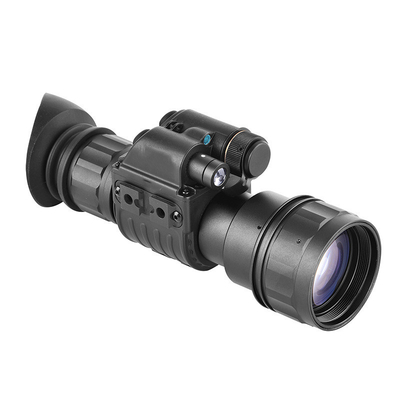

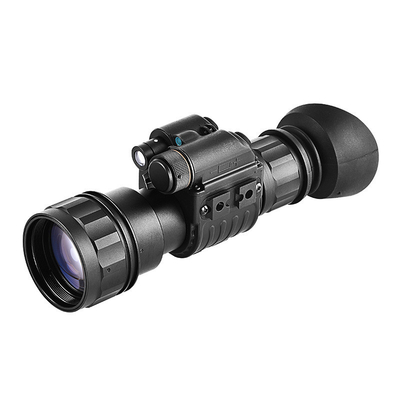

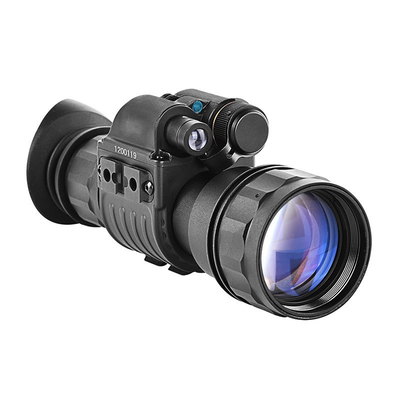

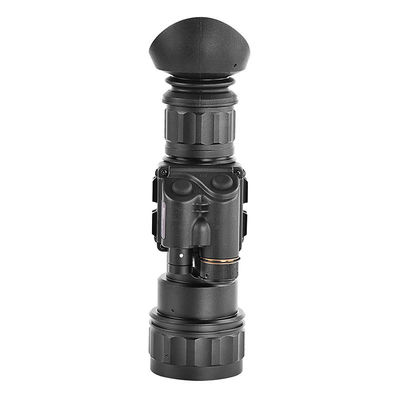

Gen2+ Image Intensifier Tube PVS-14 Hunting Night Vision Monocular Optical Scopes Russian Binoculars night vision

This model “single tube, dual eye” is one of the most popular Gen2+ night vision goggles in industry. Fully adjustable, padded headgear allows the device to be flipped-up or quickly detached from the mask. Optional 3X, 5X magnification lens will convert this device into a high performance long range binoculars. They’re lightweight, fully submersible, rugged, precisely built and easy to use.

Features:

1. FOV 40 degree
2. Suitable for Gen2+ or Gen3 image intensifier tube
3. Aluminium alloy body
4. IP65 waterproof(IP67 is optional)
5. Buit-in 850nm IR
6. Use our mount can achieve automatic shut off when flipped up
7. No power consumption when in standby
8. Embedded spring in battery's cap
9.Bright source protection



Model Explanation

The 1 st letter “D”: the abbreviation of our brand Daking
The 2 nd letter :M”: Monocular
The 1 st number 2/3: generation 2 / 3 (IIT grade)
The 2 nd and 3 rd number 04: the 4th item we have released
The 4 th number 1: magnification for objective lens
Product description
D-M2021 is most popular mil-spec and versatile night vision system on the market. They can be used handheld, head mounted or helmet mounted for hands-free, weapons mounted for hunting or shooting or attached to a camera or cam corder for nighttime photography.
Kit includes
Night Vision Monocular, Flip-up head mount, Protective carrying bag, Instruction manual, Lens cleaning cloth, Warranty card, Desiccant

Features
* IP67 weatherproof: The device can work even under 1m water for 1 hour.
* Automatic shut off when flipped up: The device will turn off automatically when pushing a button on the side of mount and lifting the unit up until reaches in the top position. Push the same button to lower monocular to the viewing position, then the device will turn on for continuation of operation.
* No power consumption when in standby: It means no power consumption in case you forget to remove the battery for some days.
* Embedded spring in battery’s cap: It makes screwing the cap easier and better protect the spring and contact with the battery.
* Fully adjustable head mount: The head mount can be adjusted according to head size.

* Mil-spec multi-coated optic: Multi antireflection film can restrain the reflex of lens, which can reduce the loss of light so more light can go though the lens to get a sharp image.
* Automatic brightness control: When the ambient light changes, the brightness of the image detected will keep the same to insure a stable viewing effect and also to protect users’ eyesight.
* Bright source protection: The device will shut off automatically in 10 seconds to avoid the damage of the image inte ns ifier tube when the ambient light exceeds 40 Lux.
* Low battery indication: A greenish light in the edge of eyepiece will start flickering when the battery is running low.

Mechnical parts code and name

1. operation button (switches both the monocular and IR illuminator on/off)
2. battery compartment 3. objective lens 4. protective cover 5. eyepiece 6. rubber eye cap 7. mounting part 8. IR illuminator 9. light detector

Device operating instructions

1. Put one 3V CR-123 lithium battery observing the polarity indications on the battery compartment (2) surface.
2. Remove the protective cover (4) when it’s used at night or in low light condition. NOTE: To protect the image intensifier tube, keep the lens cap on the objective lens when the monocular is not in use or when checked out in daylight conditions. You might test the device through the pinhole in the center of protective cover (4) and the time should be less than 10 mi nutes.
3. Turn on the device by pushing operation button (1) and moving it to NO. After this, you can start observing the scene through the eyepiece (5). The greenish-lit screen of the image tube means that the device is working normally. A green light appear in the edge of eyepiece at the same time and it serves as the power indicator as well as low battery indicator. If the indicator light starts flickering, it means the battery is running low. It is the time to change your battery. Activate the IR illuminator by another pushing button (1) 7and moving it to IR when the monocular is working in the conditions of extre me low light or total darkness, at the same time, it starts focusing the light. A red light appears in the eyepiece and is em itted from IR illuminator (8) to indicate that the IR illuminator is operating.
NOTE: The light from the illuminator can be detected by others that are using night vision devices.
4. Focus the objective lens (3) by rotating the objective lens ring for sharper image of viewed object. Adjust eyepiece (5) by rotating the eyepiece ring for sharper image of intensifier screen. Repeat these two steps for 3 times, then you might gain the sharpest image.
5. You may focus the IR light for additional distance by placing the focusing lens of the IR pivot plate ( 10 ) onto the wind ow of the IR illuminator ( 8 ). This will extend the range the useful range of the IR.
6. The light detector (9) can detect the surrounding illuminance, the device will be shut off automatically when the ambi ent light exceeds 40 Lux in 10 seconds.
7. When you finish observing, push the operation button(1) and move it to OFF, then the device stops working.
Flip up head mount installation
A.Fitting the head mount .
Adjust the head mount first before attaching the NV unit to it.
8. Loosen all the straps and place the head mount on your head.
9. Fit the head mount to your head size and tighten all the straps.
10. And last you will need to fixate the chin strap with Velcro tape.

Precautions
1. Do not disassemble the unit.
2. It’s better to use device under +5℃ to +40℃. After the unit usage in temperatures below zero, wait at least 3 hours at room temperature,to avoid condensation accumulating on the internal lens surfaces and the consequent fogging caused by extreme temperature differences.
3. Keep the device in soft carrying bag, ventilated and dry place with temperature which does not exceed +15℃. Keep away from heating device and avoid direct sunlight and high humidity which does not exceed 70%.
4. NVD should be used in nighttime and can’t be aim at strong light. If you have to test it during daytime, the front lens cap should never be removed. You can observe the target through the hole in the protection cap.
5. Use good quality lithium battery or alkaline cell, as bad qualitybatteries will effect the performance of the NVD and easily damage the device.
6. Try to avoid the rain and mist, and avoid dropping, shaking and collision.
7. Use clean soft cloth and dampened in alcohol,if necessary.
8. A useful tip is to remove the battery when the night vision will be not in use for over 3 days to prevent battery leakage and damaging the device.
NOTE: It is normal that the device can not be turned on when the ambient light exceeds 40 Lux. This device has protection system, which cuts off the image intensifier when ambient light level exceeds the limit of 40 Lux during a 10 seconds period.

Failture to follow the above precautions may cause the unit damage and will void the manufacturer’s warranty.
ITroubleshooting
If the device does not turn on
1. Reinstall the battery with the correct polarity.
2. Replace battery.
3. Clean the battery compartment, focusing on the contact points.
The observed image flickers or flashes
This means there is too much light(e.g.obervation during twilight conditions).Turn off the unit or place the objective lens cover.The unit will function normally in light conditions not in excess of 0.1Lx(full moon).
The image is missing or not focused
1. Re-focus the unit by adjusting objective lens.Adjust diopter setting by rotating eyepiece,if necessary.
2. Check the cleanliness of the objective surface and eyepiece and clean if necessary.
3. Replace batteries.
4. In extreme low light conditions,activate the built-in IR illuminator.
Image disappeared or its quality worsened
1. Automatic shut off might occurred to protect the unit from excessive 13light. Attach the objective lens cover and ensure that unit started to function normally. Turn the unit off and wait until the conditions darken to continue observation.
2. Bright light sources(e.g.street lights)may cause visibility to decrease or disappear.Turn the monocular away from the light source,visibility will restore itself in several minutes.
You see black dots on the screen
These dots are minor cosmetic blemishes resulting from the image intensifier production processes and are not a sign of a defective or low quality unit.These dots do not interfere with the reliability and performance of the monocular.
Warranty
Our warranty is 2 year from the date of purchase. For detailed warranty info, please refer to Daking’s Warranty Service.

Model number	DM-2021
Warranty	1years
Customized support	OEM, ODM
Place of Origin	Chongqing, China
Brand Name	LASERSHOT
Environmental rating	IP67
Dimensions	110 x 68 x 42
Weight	383g
Type	Monocular
Magnification	1X
Lens system	F1.2, 25.8mm
IIT	Gen 2+
Resolution	57-64lp/mm
Photocathode type	S25
S/N	17-21dB
Luminous sensitivity	500-600μA/lm
MTTF	10000hrs
FOV	40deg
Diopter	+5/-5deg
Battery Type	1 3V CR123A lithium battery
Battery life(hrs)	80 (w/o IR) 40 (w IR)
Operating temperature(℃)	-40/+60
Power supply	2.0-4.2V
