Table of technical indicators:
|
|
Infrared |
|||||
|
|
Model |
HL8-384 |
HL8-640 |
|||
|
|
Type of detector |
Amorphous silicon uncooled infrared focal plane arrays |
Vanadium oxide uncooled infrared focal plane array |
|||
|
|
Resolution |
384 x 288 |
640 x 512 |
|||
|
|
Pixel size |
17 μm |
12 μm |
|||
|
|
Field of view |
7.5 ° × 5.6 ° |
8.8 ° X 7.0 ° |
|||
|
|
Working Band |
8-14μm |
||||
|
|
NETD |
< 50 mk@25 °C,@F/1.0 |
||||
|
|
Focal length |
50mm |
||||
|
|
Frame rate |
≤50 Hz |
||||
|
|
Mode of focusing |
Electric focusing |
||||
|
|
Detection distance |
|||||
|
|
People (1.7Mx0.5Mx0.3m) |
3,333 meters |
4,722 meters |
|||
|
|
Vehicles (4.5 m x 2.0 m x 1.5 m) |
8,823 meters |
12,500 meters |
|||
|
|
Recognition distance |
|||||
|
|
People (1.7Mx0.5Mx0.3m) |
833 meters |
1,180 meters |
|||
|
|
Vehicles (4.5 m x 2.0 m x 1.5 m) |
2,205 meters |
3,125 meters |
|||
|
|
Glimmer |
|||||
|
|
Type of detector |
Ultra-low light CMOS |
||||
|
|
Resolution |
1920 × 1080 |
||||
|
|
Pixel size |
4.0 μm |
||||
|
|
Focal length |
35mm |
||||
|
|
Frame rate |
≤30 Hz |
||||
|
|
Mode of focusing |
No focus |
||||
|
Display |
||||||
|
Type of display screen |
OLED |
|||||
|
Resolution |
1024 x 768 |
|||||
|
Display size |
0.39 inches |
|||||
|

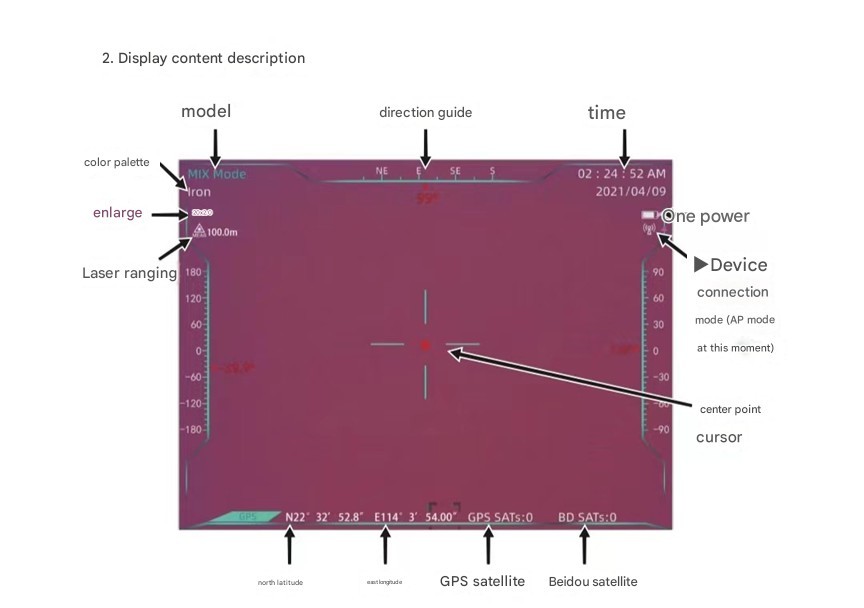

Display mode |
Infrared/Low-light-level/dual-light Fusion/picture-in-picture |
|||||
|
Electron multiplier |
1x/2x/4X |
|||||
|
Adjustment of visual acuity |
± 4 SD |
|||||
|
Color palette |
Rainbow, iron red, cool color, white heat, black heat |
|||||
|
Other features |
||||||
|
WIFI |
2.4 G video transmission |
|||||
|
Electronic compass |
Square angle display |
|||||
|
Location |
GPS/BD |
|||||
|
Ranging |
||||||
|
Range |
10m-2500m |
|||||
|
Ranging accuracy |
< 400 m, ± 1 m; > 400 m, 0.4% |
|||||
|
Storage |
||||||
|
Capacity |
Built-in 16G eMMC (note: available storage capacity, less than this value, due to system software taking up space) |
|||||
|
Take a picture |
Support |
|||||
|
Video |
Support |
|||||
|
Image/video format |
JPG/MP4 |
|||||
|
Interface |
||||||
|
CVBS output |
PAL video output |
|||||
|
USB |
Export Pictures and videos |
|||||
|
External power supply |
DC 12V/1a |
|||||
|
|
Power supply |
|||||
|
|
Removable rechargeable lithium, battery |
3200MAHX2(Battery Model 18650) |
||||
|
|
How to charge your battery |
Separate charging station |
||||
|
|
Power consumption |
≤6w |
||||
|
|
Battery life |
≥4 hours |
||||
|
|
Working/storage environment |
|||||
|
|
Operating temperature |
-20 °C to + 50 °C |
||||
|
|
Storage temperature |
-30 °C to + 70 °C |
||||
|
|
Shock |
≤30g |
||||
|
|
Level of protection |
IP54 |
||||
|
|
Overall dimensions/weight |
|||||
|
|
Dimensions |
192. 8mmx86. 9MMX189. 6mm |
||||
|
|
Weight |
1.65 kg (including battery) |
||||
